A 1.65" adjustable ratchet lever with plastic handle. This model has a technopolymer push button top covering the steel parts and insulating the user from metal contact. The lower section of the locking element has serrations for quick finger turning. Handle in Black shown, gray and orange available as options in sufficient quantities.
This model of lever is the older style from Elesa and is replaced by the newer ERX model. This one is also one of the shortest lever arm lengths available.
- Glass-fiber reinforced technopolymer lever.
- Brass or Stainless components, stainless return spring.
- Black standard color, matte finish.
- Call for other colors.
- Push button top.
- 10-24, 10-32, 1/4-20 Threads.
- Made in Italy.
|
 |
Choose your Part# on the specs page before adding to Cart.
- Glass-fiber reinforced technopolymer lever.
- Brass or Stainless components, stainless return spring.
- Black standard color, matte finish.
- Call for other colors.
- Push button top.
- 10-24, 10-32, 1/4-20 Threads.
- Made in Italy.
|
|
 |

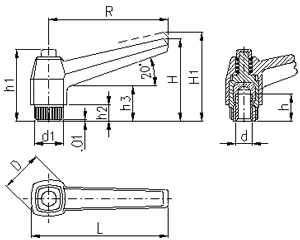

| Part# |
Thread |
R |
L |
D |
H |
H1 |
h1 |
h2 |
h3 |
d1 |
h |
| 941131 |
10-24 |
1.65 |
1.97 |
.71 |
1.26 |
1.40 |
1.14 |
.24 |
.55 |
.47 |
.39 |
| 941133 |
10-32 |
| 941141 |
1/4-20 |
| 941191 |
1/4-20 |
|
| Brass/Stainless |
Choose your Part# before adding to Cart.
