This small length adjustable ratchet lever can be used to replace the threaded thumbnut on Harris S-series Bipod setups.

The handle is die-cast zinc, with a low-gloss matte black powder-coat finish, with a slightly pebbled texture. The metal insert components are made of steel with a black-oxide finish.

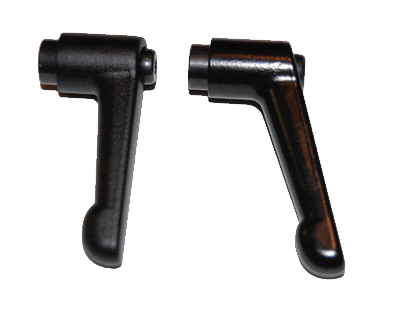

When compared to the BPL-Z (below, right), the straight lever design reduces overall product height by .52" (.86" vs. 1.38", dimension h3)

Also available with a metric M6x1.0 thread for use with import model bipods (i.e. Outers, Rockport).

Effective August 2008, each bipod lock comes packaged with a single spacer

A single 3/16" black-oxide spacer is included. Use the spacer with the lever to avoid trimming down your threaded stud. A typical Harris retrofit should require only a single spacer. Should you desire additional spacers, they can be obtained here.

For an independent review of this product, please visit westernshooter.com

1.75" Zinc Die-Cast handle Black-oxide steel components 10-32 or M6x1.0 threads Black powder coat finish Made in Germany

l1	d3	d4	h1	h2	h3	h4	t min	A/F
1.77 (45)	.39 (10)	.51 (14.4)	.96 (24.5)	.16 (4)	.86 (35)	.14 (3.5)	.31 (8)	.12 (3.1)	inch (mm)
