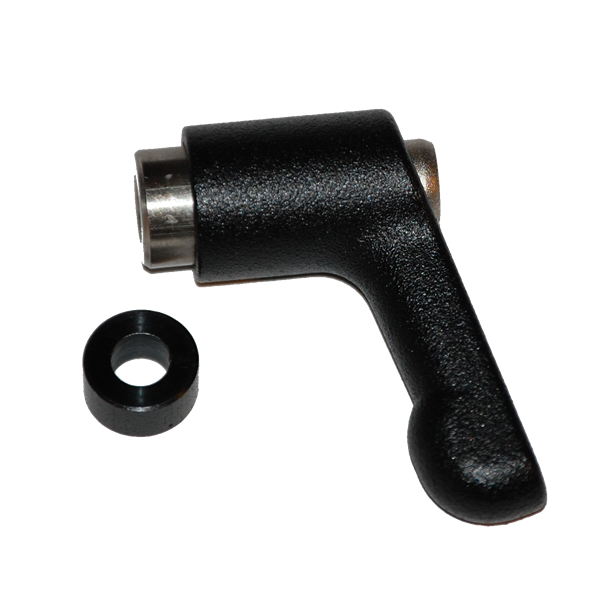

This small length adjustable ratchet lever can be used to replace the threaded thumbnut on Harris S-series Bipod setups.

The handle is die-cast zinc, with a low-gloss matte black powder-coat finish, with a slightly pebbled texture. Insert components are stainless steel.

The compact size of the Micro lock does not protrude past the body of the bipod, yet is still easily grasped, even when wearing gloves.

Also available with a metric M6x1.0 thread for use with import model bipods (i.e. Outers, Rockport).

Effective August 2008, each bipod lock comes packaged with a single spacer

A single 3/16" black-oxide spacer is included. Use the spacer with the lever to avoid trimming down your threaded stud. A typical Harris retrofit should require only a single spacer. Should you desire additional spacers, they can be obtained here.

For an independent review of this product, please visit westernshooter.com

33mm (~1.30") Zinc Die-Cast handle Black-oxide steel components 10-32 or M6x1.0 threads Black powder coat finish Made in Germany

l1	d3	d4	h1	h2	h3	h4	t min	A/F
1.30 (33)	.39 (10)	.51 (14.4)	.96 (24.5)	.16 (4)	.86 (35)	.14 (3.5)	.31 (8)	.12 (3.1)	inch (mm)
